1. High brightness Mapo laser developed specifically for precision welding of dissimilar metal structural components in 3C products;
2. Multi axis servo motion platform
3. High precision galvanometer scanning
4. Dual station design, saving time and effort, doubling efficiency
5. Coaxial visual positioning system
6. Air cooled maintenance free

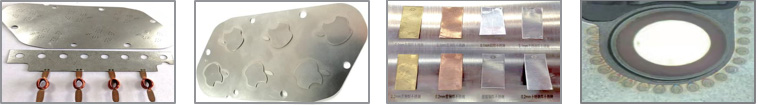

Widely used for welding dissimilar non-ferrous metal sheets in internal structural components of consumer electronics, such as camera modules, mobile phone conductive patch resistors, etc., suitable for high-precision and high-efficiency precision laser welding processing.
Device Name | Double Station Precision Laser Welding Machine |
Average laser power (w) | 80-120-150 |
Laser type optional | Nanosecond pulse (MOPA), millisecond pulse (QCW) |
Laser wavelength | 1064nm/1070nm |
Working method | Continuous/spot welding |
Auxiliary Sports Platform | X:600 Y:300 Z:400（customizable） |
Welding galvanometer | Nanoseconds (10 spot), QCW (30 spot) |
Welding speed | 0-500mm/s |
Empty jump speed | 0-2000mm/s |
Repeat positioning progress | ±0.02mm |
Coaxial visual positioning | Optional |
Visual positioning accuracy | ±0.02mm |
Security configuration | Safety grating, laser protective upper cover |
Cooling method | Air cooling |
Working environment | 5-40 ℃, humidity<70%, no condensation |
Electricity demand | 220V、50Hz |
Overall dimensions | L:1000xW:1120xH:2200 (mm) |
Total weight | ≈350Kg |
