High power galvanometer laser welding workstation

Category：High power galvanometer laser welding workstation

It is mainly used for automotive body sheet metal parts, door panels, seats, and commonly used automotive accessories. In terms of materials, it can be applied to various commonly used materials such as steel plates, cold-rolled plates, aluminum alloys, as well as composite materials and alloy materials such as magnesium aluminum alloys.

Send email to us Download as PDF

Phone：+86 180 6825 4557

Mail：he@dxh-laser.com

Product Features

Model features:

1. Real time synchronization between flying welding joints and robots - accelerating the laser welding process

2. High speed dynamic performance ⇒ Scanning speed up to 60 m/min

3. Non contact machining process ⇒ Focal length: 0.5 to 1.5 m, accuracy ≤ 0.2 mm

4. Can perform high-speed spot welding, seam welding, overlay welding, butt welding, corner welding, and lap welding

5. Less footprint, lower maintenance costs

Product structure：

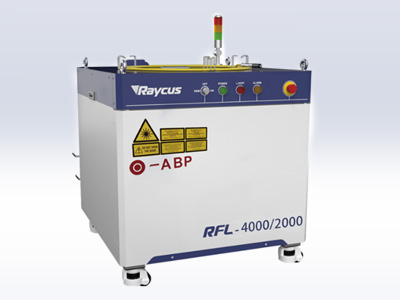

Laser：

Fiber lasers cooperate with well-known domestic manufacturers to customize optical components based on product characteristics, with small structure, high integration, good stability, maintenance free, and low energy consumption. It can achieve different modes of output such as Gaussian spot, circular spot, and mixed spot, meeting the needs of high-quality laser welding and becoming a powerful tool to improve processing quality and efficiency

Positioner：

Dual station design welding positioner design, with original control module for rotation, high precision, and fast response

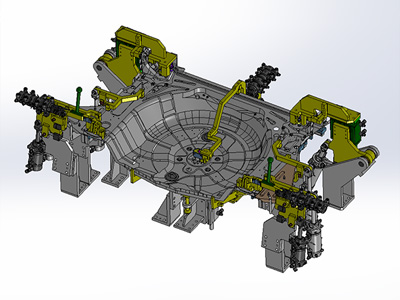

Workwear fixture：

Rapid fixture design, based on years of industry accumulation, with rich experience in fixture design, specifically designed for the automotive industry as a fixture that is easy to install, highly practical, accurately positioned, and highly compatible

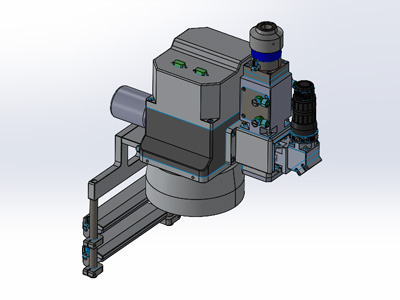

Welding joint of vibrating mirror：
This welded joint has a compact structure and is more effective and of better quality in welding applications for thick plates and large items. The internal structure of the welding joint is completely sealed, which can prevent the optical part from being contaminated by dust. Equipped with air curtain components to reduce the pollution of welding fumes and splashing residue on the lenses. The protective lens adopts a drawer style structure, which is easy to replace. Can be paired with coaxial cable

Application field


Technical Specifications

设备名称	DXH-大功率振镜激光焊接机
激光功率	2000-20000W
激光波长	1080nm
工作方式	连续/点焊
流水线及自动上下料机构	大鑫华定制
测高系统	基恩士
最大焊接范围（mm）	1000x600x400（可定制）
焊接速度	0-500mm/s
空跳速度	0-2000mm/s
重复定位进度	±0.02mm
工作环境	5~40℃、湿度＜70%、无凝露
电力需求	220V、50Hz/380V、50Hz
设备尺寸	L:3000W:1500H:2200
整机重量	≈1800Kg

对比	设备成本	生产效率	焊接效率	焊接区域范围
点焊	高	慢	慢	窄
飞行焊	低	快	快	广
