Rotating precision laser welding machine
Category:Other laser welding machines
Widely used in precision laser welding fields such as internal structural components of electronic consumer products, camera modules, metal casings, batteries, and motors, suitable for high-precision and high-efficiency laser welding processing.

Phone:+86 180 6825 4557

Mail:he@dxh-laser.com

Product Features

1. High brightness Mapo laser developed specifically for precision welding of dissimilar metal structural components in 3C products;

2. Ultra precision rotating chuck and fixture design for high-precision mirror scanning

3. Multi purpose machine with diverse functions, capable of welding even in flat rotation

4. Air cooled maintenance free


Application field

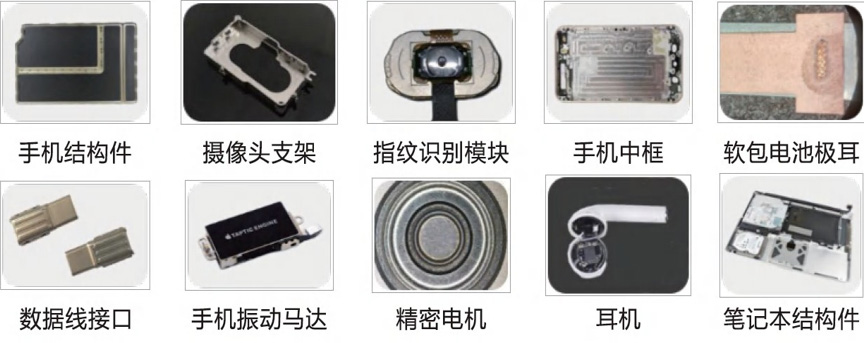

Widely used in precision laser welding fields such as internal structural components of electronic consumer products, camera modules, metal casings, batteries, and motors, suitable for high-precision and high-efficiency laser welding processing.



Technical Specifications

设备名称

DXH-旋转精密激光焊接机

激光平均功率(w)

120-150

激光器类型可选

纳秒脉冲(mopa),毫秒脉冲(QCW)

激光波长

1064nm/1070nm

工作方式

连续/点焊

旋转平台

转盘式4工位(可定制)

焊接振镜

纳秒(10光斑),QCW(30光斑)

焊接速度

0-500mm/s

空跳速度

0-2000mm/s

重复定位进度

±0.02mm

同轴视觉定位

可选

视觉定位精度

±0.02mm

安全配置

安全光栅,激光防护上罩,安全门

冷却方式

风冷

工作环境

5~40℃、湿度<70%、无凝露

工作电压

220V、50Hz

整机重量

≈300Kg
