Multi path precision laser welding machine
Category:Other laser welding machines
Adopting one to two or multiple operation methods, the production efficiency is twice that of ordinary operation methods;Integrate a spectral arbitration system within the laser, eliminating the need for waiting time and providing convenient operation

Phone:+86 180 6825 4557

Mail:he@dxh-laser.com

Product Features

1. Adopting one to two or multiple operation methods, the production efficiency is twice that of ordinary operation methods

2. Integrate a spectral arbitration system within the laser, eliminating the need for waiting time and providing convenient operation

3. Equipped with a galvanometer welding system, it operates in a scanning mode within the area, with high accuracy and fast speed

4. System standardization, modular design, stable performance

5. The device has a simple structure, beautiful appearance, friendly human-machine cross-section, and high cost-effectiveness


Application field

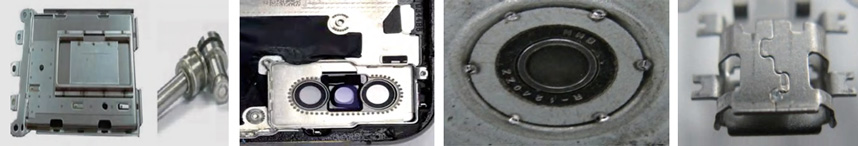

Mainly targeting the 3C industry, it is commonly used for precision welding of metal sheets, precision structural components, and electronic components



Technical Specifications

设备名称

多光路精密激光焊接机

激光平均功率(w)

150(标配)

激光器类型可选

毫秒脉冲(QCW)

激光波长

1070nm

工作方式

连续/点焊

分光方式

高速分光/时间分光/能量分光

焊接振镜

QCW(30光斑)

焊接速度

0-500mm/s

空跳速度

0-2000mm/s

重复定位进度

±0.02mm

同轴视觉定位

可选

视觉定位精度

±0.02mm

冷却方式

风冷

工作环境

5~40℃、湿度<70%、无凝露

电力需求

220V、50Hz

外形尺寸(mm)

L:1000xW:1120xH:2200

整机重量

≈150Kg
