1、Rapid tooling changeover for flexible production across multiple machine models
2、Stacked module design enables multi-dimensional composite motion
3、Lungmen Dual-Drive Architecture, featuring large travel, high rigidity, and high load capacity
4、Synchronous control algorithm, smooth motion, reliable accuracy
5、Suitable for large workpieces and high-precision automated machining scenarios

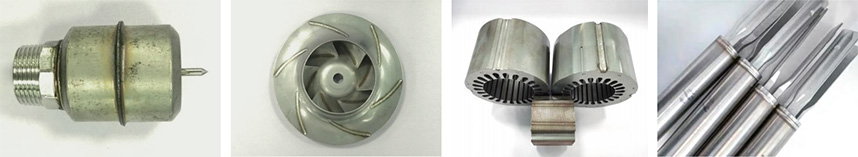

Laser welding is suitable for industries such as aviation, aerospace, weapons, ships, petrochemicals, household appliances, daily necessities, medical, instrumentation, electronics, automobiles, and mold repair. Suitable for welding materials such as gold, silver, stainless steel, cobalt, copper, titanium alloys, etc.
| Model | Single-platform superimposition / Gantry structure | Weld seam tracking | Optional (Visual/Laser) |
| Laser power | 500-12,000W (optional) | Autofocus | Optional (photoelectric/contact type) |
| Laser type | Continuous laser/pulse laser (optional) | Visual localization | Optional (coaxial/side axis) |
| Laser wavelength | 450nm/532nm/915nm/1070nm | In-process Weld Inspection | Optional WDD |
| Working method | Continuous spot welding | Penetration depth inspection | Optional OCT |
| Motion structure | Multi-axis Cartesian module | Visual positioning accuracy | ±0.02mm |
| Effective Welding Range | 0-1200mm | Security configuration | Safety doors/safety barriers/protective covers, etc |
| Welding head configuration | Wobble welding head/Scanning galvanometer head (optional) | Cooling method | Water cooling |
| Welding speed | 0-400mm/s | Working environment | 5-40 ℃, humidity<70%, no condensation |
| Empty jump speed | 0-2000mm/s | Working Voltage (1) | Two phases and three lines AC220V、50Hz |
| Module repeat positioning accuracy | ±0.03mmm | Working Voltage (2) | Three phase five wire AC380V、50Hz |
| Model | Single-platform superimposition / Gantry structure |
| Laser power | 500-12,000W (optional) |
| Laser type | Continuous laser/pulse laser (optional) |
| Laser wavelength | 450nm/532nm/915nm/1070nm |
| Working method | Continuous spot welding |
| Motion structure | Multi-axis Cartesian module |
| Effective Welding Range | 0-1200mm |
| Welding head configuration | Wobble welding head/Scanning galvanometer head (optional) |
| Welding speed | 0-400mm/s |
| Empty jump speed | 0-2000mm/s |
| Module repeat positioning accuracy | ±0.03mmm |
| Weld seam tracking | Optional (Visual/Laser) |
| Autofocus | Optional (photoelectric/contact type) |
| Visual localization | Optional (coaxial/side axis) |
| In-process Weld Inspection | Optional WDD |
| Penetration depth inspection | Optional OCT |
| Visual positioning accuracy | ±0.02mm |
| Security configuration | Safety doors/safety barriers/protective covers, etc |
| Cooling method | Water cooling |
| Working environment | 5-40 ℃, humidity<70%, no condensation |
| Working Voltage (1) | Two phases and three lines AC220V、50Hz |
| Working Voltage (2) | Three phase five wire AC380V、50Hz |
