3D laser engraving machine for automotive lighting
Category:Laser Marking Machine
具备三维曲面立体打标功能,在工作范围内实现高精度打标,确保打标效果一致;采用德国进口的光学聚焦系统,具备更大的Z轴动态范围,有效提高加工效率;设计采用安全保护光栅,确保人员操作安全;该三维激光打标机采用先进的数字式三轴动态聚焦技术,打标速度快,变焦控制实时性高,聚焦光斑均匀

Phone:+86 180 6825 4557

Mail:he@dxh-laser.com

Product Features


Model features:

1. Equipped with three-dimensional surface marking function, achieving high-precision marking within the working range to ensure consistent marking effect;

2. Adopting an optical focusing system imported from Germany, it has a larger Z-axis dynamic range, effectively improving processing efficiency;

3. The design adopts a safety protection grating to ensure the safety of personnel operation;

4. This 3D laser marking machine adopts advanced digital three-axis dynamic focusing technology, with fast marking speed, high real-time zoom control, and uniform focusing spot;

5. Using self-developed software and control systems, directly importing 3D design software output files;

6. Cooperate with 3D data processing and CCD image alignment function to achieve surface marking effect;


Product Structure:


Laser:

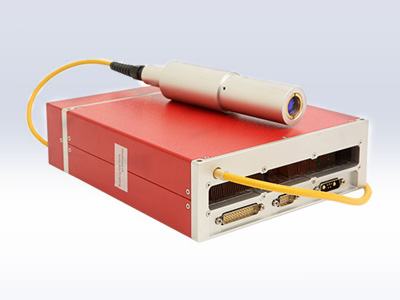

Fiber laser cooperates with well-known domestic and foreign manufacturers, and can customize optical components according to product characteristics through professional welding. It has a small structure, high integration, good stability, maintenance free, and low energy consumption. Meeting the demand for high-quality laser welding has become a powerful tool for improving processing quality and efficiency


Laser control system:

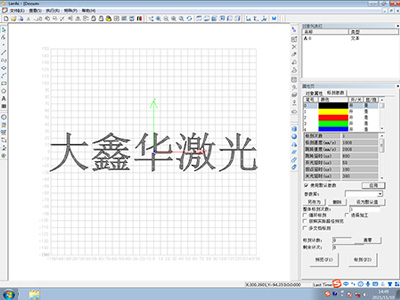

The company's independently developed 3D specialized software and control system can perfectly achieve fine machining of any curved workpiece without defocusing phenomenon; It can also track the focus of deep carving in real-time, making the processing efficiency and quality better than traditional 2D marking machines


Rapid fixture design:

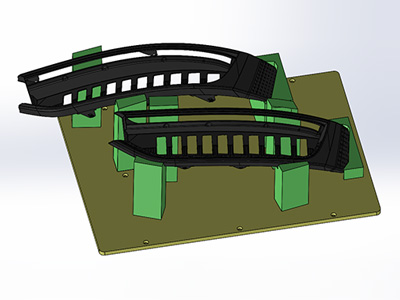

Based on years of industry accumulation, we have rich experience in fixture design and have established a product database to quickly design fixtures that are easy to install, highly practical, and accurately positioned according to customer products. Professional design, reasonable layout, beautiful appearance, small space occupation, dust-proof and dehumidification, can effectively ensure the use environment of optical components, extend the service life of equipment, and can be customized according to customer needs


Mirror module:

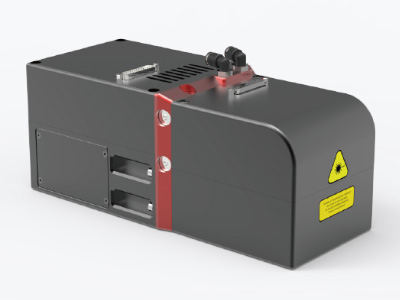

Independently developed high-speed 3D vibrating lens, after years of market accumulation and improvement, the vibrating lens is safe and stable, with fast marking speed, high accuracy, good beam mode, high marking quality, and good effect. It is an economical and efficient marking vibrating lens
Application field

This device is a multifunctional, dual station, and compatible laser engraving machine for automotive body parts, headlights, and other products independently researched and developed by our company. The device has its own automatic file selection and processing function, without the need for overly complex programming operations.



Technical Specifications

设备名称

DXH-汽车灯饰3D镭雕机

平均输出功率(w)

20-120

激光波长(nm)

1064

脉冲重复频率(KHz)

1-4000

脉冲宽度(ns)

2-500(视功率)

扫描速度(mm/s)

≤7000

振镜

动态聚焦

标刻范围(mm²)

100-600

最小标记线宽(mm)

0.06(视材质)

冷却方式

风冷

系统供电

AC220V/50Hz

环境温度

0~40°C

环境湿度

30%≤RH≤85%

油污,凝露

不允许

整机重量(kg)

≤300不含包装

加工软件

大鑫华激光标刻软件

视觉系统

可定制

运动平台

可定制X,Y运动平台

治具

可定制

除尘净化

可定制

安全门

可定制
