Precision UV laser marking machine
Category:Laser Marking Machine

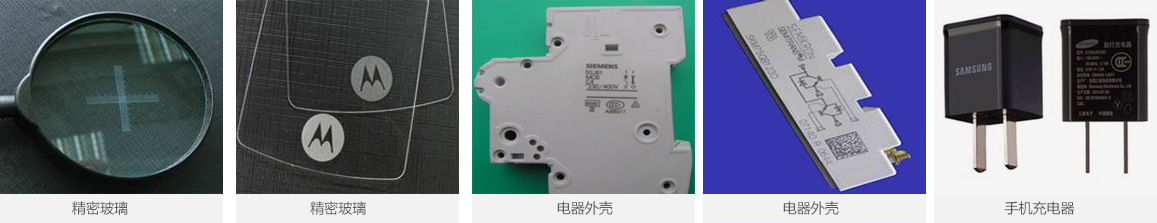

Suitable for fine marking of superhard materials such as sapphire, quartz, ceramics, glass, etc. Suitable for marking accessories related to mobile phones and tablets, such as phone covers, touch screens, data cables, power supplies, connectors, etc. Widely used for surface marking and micro hole punching of packaging bottles made of polymer materials such as food, medicine, cosmetics, and wires.

Phone:+86 180 6825 4557

Mail:he@dxh-laser.com

Product Features

1. The wavelength of ultraviolet laser is short, the beam quality is good, and the focused spot is smaller;

2. UV laser processing belongs to cold processing with minimal thermal impact;

3. Stable power pulse width output, especially suitable for ultra-fine microfabrication;

4. Adopting fully enclosed cabinets and equipped with professional dust removal systems, making work more environmentally friendly.


Application field

Suitable for fine marking of superhard materials such as sapphire, quartz, ceramics, glass, etc. Suitable for marking accessories related to mobile phones and tablets, such as phone covers, touch screens, data cables, power supplies, connectors, etc. Widely used for surface marking and micro hole punching of packaging bottles made of polymer materials such as food, medicine, cosmetics, and wires.


Technical Specifications

设备名称

DXH-精密紫外激光打标机

机器型号

3W

5W

10W

标记参数

标记范围 /工作距离

标配100mmx100mm/192mm(±5mm)

选配160mmx160mm/296mm(±5mm)

标记最小字符 (字高1mm)

0.1mm

标记最小线宽

10 μm-15 μm

标记速度 (字高1mm)

400字符/秒

激光特性

激光波长

355nm

输出功率

10W/30KHZ

光束质量M2

<1.2

脉冲重复频率

10-100KHZ

其它

冷却方式

水冷

运行环境温度

5°C-35°C

电力要求

单相AC 220V,16A

整机功率

1.5kw

2kw

4.5kw

外形尺寸

主机系统

1020mm×650mm×1610 mm
